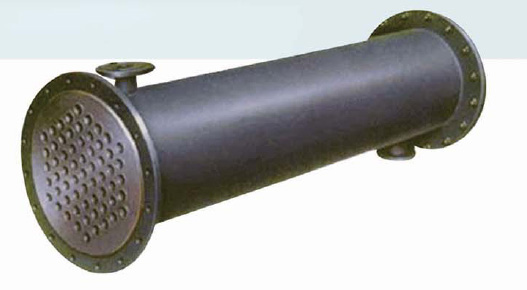

Shell and tube condenser



        列管冷凝器,按材质分为碳钢列管冷凝、不锈钢列管式冷凝器和碳钢 与不锈钢混合列管式冷凝三种,按形式分为固定管板式、浮头式、U型管式换热器, 按结构分为单管程、双管程和多管程。传热面积0.5-500m2,可根据用户需要定制。


公称直径

管程数

管子数量

换热面积 公称值/计算值

管程通道截面积 管程通道流速为0.5m/sec时的流量m/hr

公称压力

管子长度(m)

φ25×2.5

1500

2000

3000

4000

6000

φ25×2

159

1

14

1.51.62

22.17

33.27





0.0044/0.0049

7.92/8.82

0.25

219

1

26

3/3.00

4/4.02

6/6.06

8/8.1



0.0082/0.0090

14.76/16.20

0.6

2

26

3/3.00

4/4.02

6/6.06

8/8.81



0.0041/0.0045

7.38/8.01

1.0



273

1

44

5/5.08

7/5.18

10/10.26

14/13.72

21/20.63

0.0138/0.0152

24.84/27.36

1.6



2

40

5/4.62

6/6.19

9/9.33

12/12.47

19/18.76

0.0063/0.0069

11.24/12.42

2.5

325

1

60

7/6.93

9/9.28

14/14.00

19/18.71

28/28.13

0.0188/0.0208

33.84/37.44

0.6



2

56

6/6.47

9/8.66

13/13.05

17/17.46

36/26.26

0.0088/0.0097

15.84/17.46

1.0

400

1

119

14/13.47

18/18.41

28/27.76

37/37.10

55/55.8

0.0374/0.0412

67.32/74.16

1.6



2

110

13/12.70

17/17.02

26/25.66

34/34.20

50/51.58

0.0173/0.0190

31.14/34.20

2.5

500

1

185





45/4.15

55/57.68

85/86.74

0.0581/0.0641

104.58/115.38





2

180





40/41.99

55/57.68

85/86.74

0.0283/0.0312

50.94/56.16



600

1

269





60/62.7

85/83.88

125/126.13

0.0845/0.0932

152.10/167.76





2

266





60/32.05

80/82.94

125/14.72

0.0418/0.0461

75.24/83.98



700

1

379





90/88.41

120/118.17

175/177.71

0.0091/0.1313

214.38/236.34





2

358





85/83.51

110/111.62

165/167.85

0.0562/0.0620

101.16/111.60
